Molecular self-assembly of block copolymers is a recent bottom-up approach to create nanostructured surfaces for templating and lithographic processes. Microphase separation utilizes the incompatibility of polymer blocks that are covalently connected to each other. Applications in lithography require the capability to induce a macroscopic alignment, for example by directing the self-assembly along guiding lines.

The need for ever-decreasing nanostructure pitch sizes for next-generation lithography pushes this process to the limit, as increasingly smaller block copolymer chains used to minimize the pitch size leads to a reduced entropy of mixing with only a marginal driving force for microphase separation.

“This research elucidates how crystallization can be used to create nanostructured surfaces in a size regime towards sub-10 nm using the molecular self-assembly of a crystallizable, amphiphilic polyethylene-b-polyethylene oxide (PE-b-PEO) block co-oligomer”, explains the leader of the research project, Thomas Keller from DESY in Hamburg, Germany.

Ivan Maximov from Lund University in Sweden adds “Crystallization itself acts as a driving force for separation with a much higher segregation strength compared to the sole microphase separation”.

Alexander Meinhardt, researcher at the DESY NanoLab, describes his observation: “In situ AFM analysis at the DESY NanoLab indicates the PEO crystallization as a crucial step to form the nanostructures by triggering a morphological transition involving a rotation of the forming extended chain crystals in edge-on orientation.”

“In this study, electron beam lithography is utilized to create a guiding pattern on which the block copolymer assembles in a macroscopic alignment”, adds Christian David from the Paul Scherrer Institute in Villigen-PSI in Switzerland.

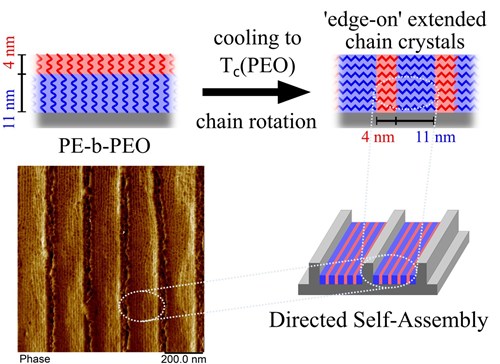

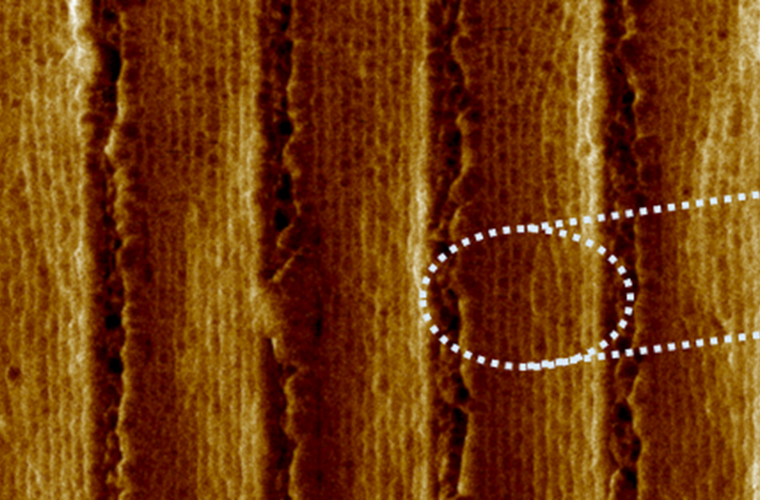

AFM phase analysis of crystallization-induced directed self-assembly of extended PE-b-PEO chains. © Thomas F. Keller, Ivan Maximov, Christian David, et al.

“These results were made possible through our joint activities within NFFA-Europe, which gave us access to a collaborative network of leading scientific facilities and enabled us to pursue our research using advanced tools and expertise”, concludes Thomas Keller.

Thomas Keller explains “While common high molecular weight polymers adopt spaghetti-like conformations, the short chain length of the investigated PE-b-PEO system with only 16 ethylene and 41 ethylene oxide units permits the block copolymer to crystallize into extended chain crystals consisting of vertical lamellae.”

This dense packing provides enhanced thermodynamic stability beneficial for the following lithographic steps towards potential applications. Moreover, the observed mechanism to form stable edge-on lamellae could in the future be transferred to other crystallizable short chain BCPs, providing potential pathways for sub-10 nm nanotechnology.

Alexander Meinhardt, Peng Qi, Christian David, Ivan Maximov, Thomas F. Keller. A Pathway Toward Sub-10 nm Surface Nanostructures Utilizing Block Copolymer Crystallization Control. Advanced Marterials Interfaces, Volume12, Issue 6 March 16, 2025
