World Record: 7 nm Resolution in Scanning Soft X-ray Microscopy

With newly developed Fresnel zone plates, researchers from PSI, DESY, and Soleil reached 7 nm resolution in scanning soft X-ray microscopy

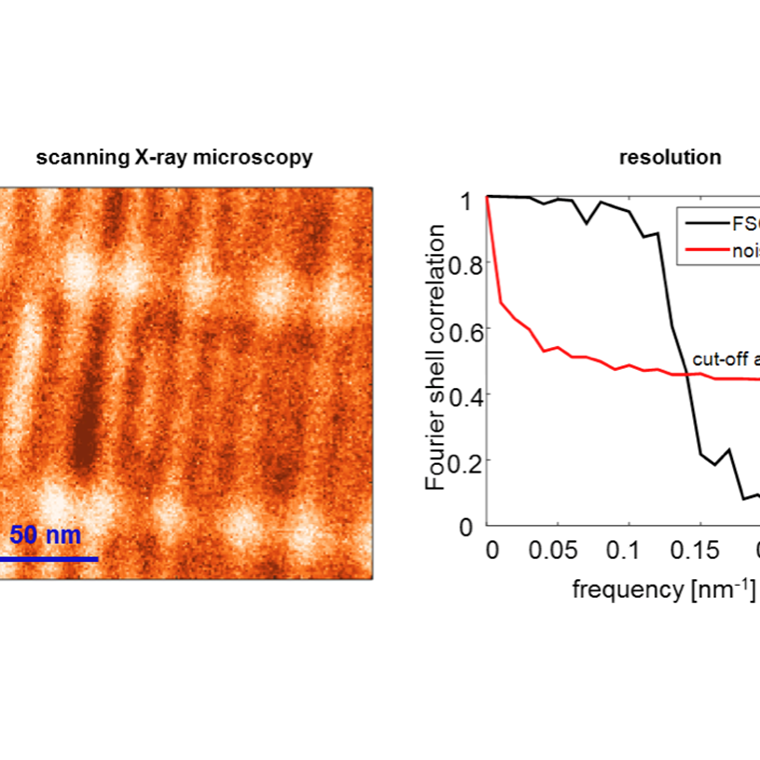

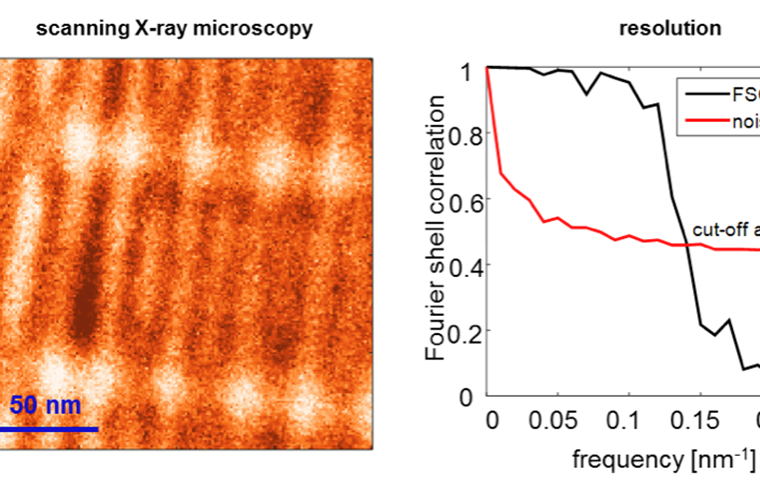

Click for full size image. Scanning soft x-ray microscopy with 7 nm spatial resolution

The short wavelengths of X-rays promise to reach spatial resolutions in the deep single-digit nanometer regime, providing unprecedented access to physical phenomena, such as magnetism at fundamental length scales. Despite considerable efforts in soft X-ray microscopy techniques, demonstrating a two-dimensional resolution beyond ten nanometers has not long remained a challenge for both scanning and full-field X-ray microscopy.

The developments in lithography-based diffractive optics by the X-ray Optics and Application group at PSI resulted in Fresnel zone plate lenses with structural sizes that can be as small as 6.4 nm [Rösner et al., Microsc. Microanal. 24 (Suppl. 2), 2018]. Utilising these lenses to their full capability is challenging in a number of ways. Firstly, the short focal length provides little space for blocking the unfocused, zero-order part of the transmitted X-ray beam. Secondly, very high mechanical precision is required to keep the sample in focus, and most importantly, to control the lateral positioning of sample relative to the focused X-ray beam. A critical part of the microscope system is the interferometric measurement of the sample position by laser beams in three dimensions and its coupling to the movement stages in order to overcome external vibrations. Implementing these lenses together with stability and precision improvements at the PolLux and Hermes scanning X-ray microscopes and a careful design of the experimental geometry, made the imaging of seven nanometer-sized structures possible. By combining this highly precise microscopy technique with the X-ray magnetic circular dichroism effect, the team reveals dimensionality effects in an ensemble of interacting magnetic nanoparticles.

In the recently published paper, PSI researchers and an international team of collaborators report on this achievement. The achieved imaging resolution of seven nanometers has never before been achieved in full-field or scanning soft X-ray microscopy, and is even competitive with coherent imaging techniques, such as ptychography.

High resolution scanning X-ray microscopy at the PolLux microscope

Publication Details


2020, Optica 7, 2020, pp.1602-1608. DOI:10.1364/OPTICA.399885

Soft x-ray microscopy with 7 nm resolution

B. Rösner, et al.
