High-resolution resist-free lithography for nanoporous thin films

Researchers at KU Leuven (Belgium) and from the TU Graz’s (TUG) outstation Austrian SAXS beamline c/o ELETTRA - Sincrotrone Trieste (Italy) developed a high-resolution resist-free lithography process to pattern metal-organic framework (MOF) films.

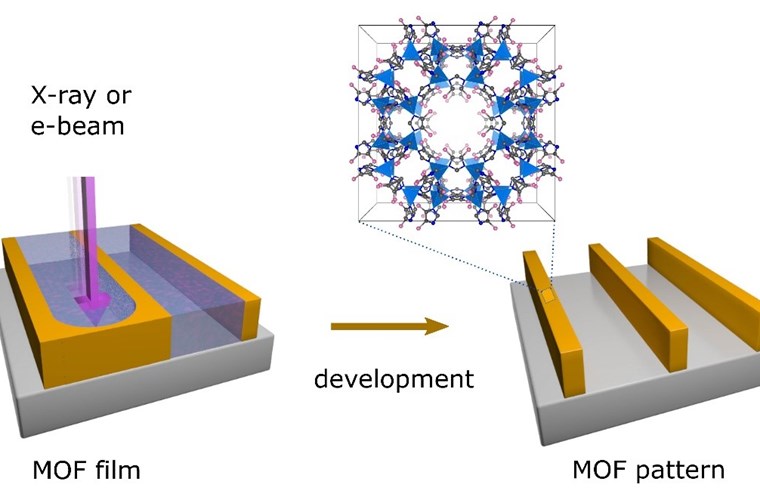

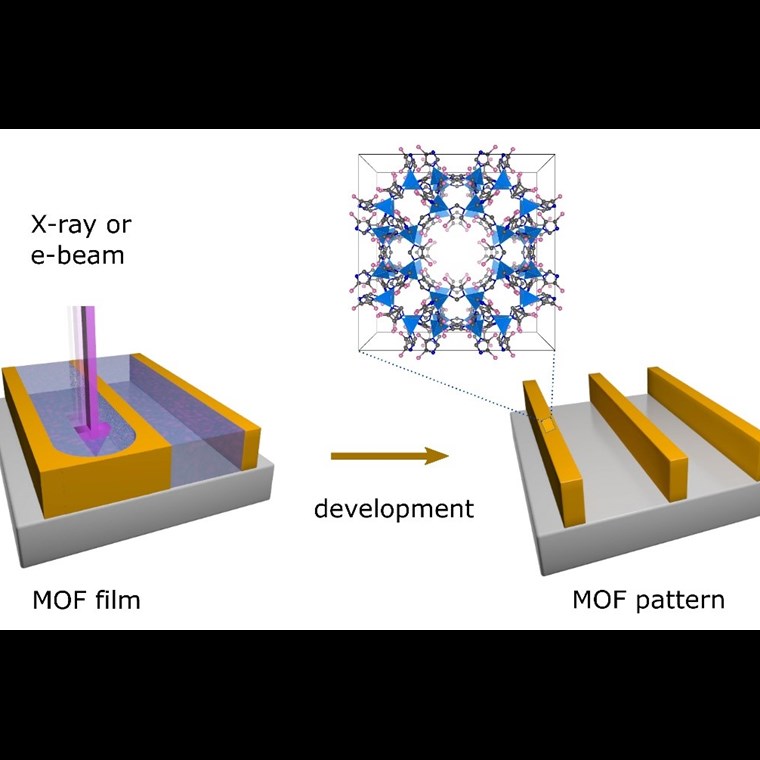

Direct X-ray and e-beam lithography of MOF films. Credit: KU Leuven (Belgium)

Metal-organic frameworks (MOFs) are molecular sponges that consist of organic molecules and metal ions. “There is a bright future for these materials in high-tech miniaturized devices such as low-power processors, resistive memory, sensors, and flexible electronics,” says Professor Rob Ameloot from the KU Leuven Centre for Membrane Separations, Adsorption, Catalysis, and Spectroscopy (cMACS). “Both the MOF and microelectronics communities have been striving towards integrating MOFs in microchips, which requires two key engineering steps: thin film deposition and lithographic patterning.”

In 2016, the Ameloot group developed chemical vapor deposition of MOF thin films, a method compatible with industrial chip fabrication. Conventional lithography techniques use a sacrificial layer, so-called photoresist, to transfer a pattern into the desired material. The use of photoresist complicates the process, and might induce contamination of the highly porous MOF films. Now, the team has used the deep X-ray lithography (DXRL) beamline at Elettra to realize the direct lithography of MOF thin films.

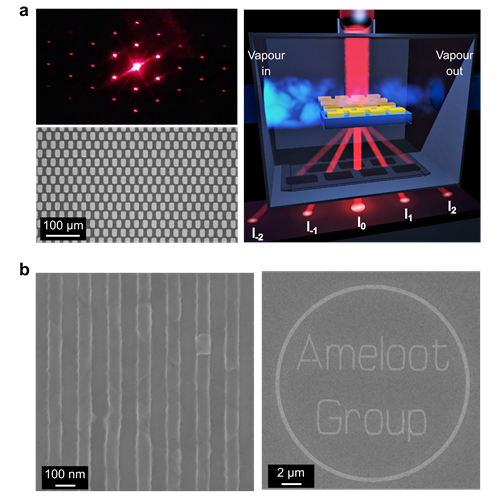

a, MOF patterns as diffraction grating vapor sensors. b, SEM images of high-resolution MOF patterns. Adapted with permission from Nat. Mater. (2020), DOI: 10.1038/s41563-020-00827-x. Copyright (2020), Springer Nature.


“Our goal was to eliminate the use of photoresist and still have high-quality MOF patterns,” says Min Tu, postdoctoral researcher at KU Leuven and first author of the paper. “Our method is based on selective X-ray or e-beam exposure of the MOF film, which induces chemical changes that enable its removal by a common solvent. This process completely avoids the resist layer, thus significantly simplifying patterning while maintaining the physicochemical properties of patterned MOFs intact. Moreover, we can pattern much smaller features than previously possible, and our technique is already compatible with existing nanofabrication processes. To demonstrate some of the capabilities of this method, we fabricated a photonic sensor that responds to organic vapors.”

“NFFA Europe has offered a unique opportunity to conduct our research project on the direct lithography of MOFs, and the characterization by small-angle X-ray scattering.” Min continues.

“Apart from MOF thin films, the deep X-ray lithography is capable of patterning MOF single crystals, and even three-dimensional shaping,” says Dr. Benedetta Marmiroli, TUG senior researcher working at the DXRL beamline.

“The grazing-incidence small-angle X-ray scattering demonstrates that the crystal structure of non-irradiated MOF film is maintained throughout the DXRL process”, says Prof. Heinz Amenitsch, the responsible of the Austrian SAXS beamline.

“We’ve found an exciting way to pattern MOF materials on surfaces” Rob concludes “Now, it’s time to design and implement them into miniaturized devices.”

Publication Details

Nat. Mater. (2020), DOI: 10.1038/s41563-020-00827-x.

X-ray and electron-beam lithography of halogenated zeolitic imidazolate frameworks,

M. Tu, B. Xia, D. E. Kravchenko, M. L. Tietze, A. J. Cruz, I. Stassen, T. Hauffman, J. Teyssandier, S. De Feyter, Z. Wang, R. A. Fischer, B. Marmiroli, H. Amenitsch, A. Torvisco, M. de J. Velásquez-Hernández, P. Falcaro and R. Ameloot

NFFA-Europe Facilities and Techniques

The direct X-ray lithography of MOFs has been conducted at the TUG facility DXRL beamline at Elettra-Sincrotrone Trieste. GISAXS measurements have been carried out at the TUG facility Austrian SAXS beamline at Elettra-Sincrotrone Trieste.
