Altering properties of transition metal dichalcogenides by bi-intercalation

Advanced synchrotron radiation spectroscopy at the IOM-CNR laboratory in Trieste helped to gain insight into the origins of phase transitions in Cu and Ni doped TiSe2 dichalcogenide.

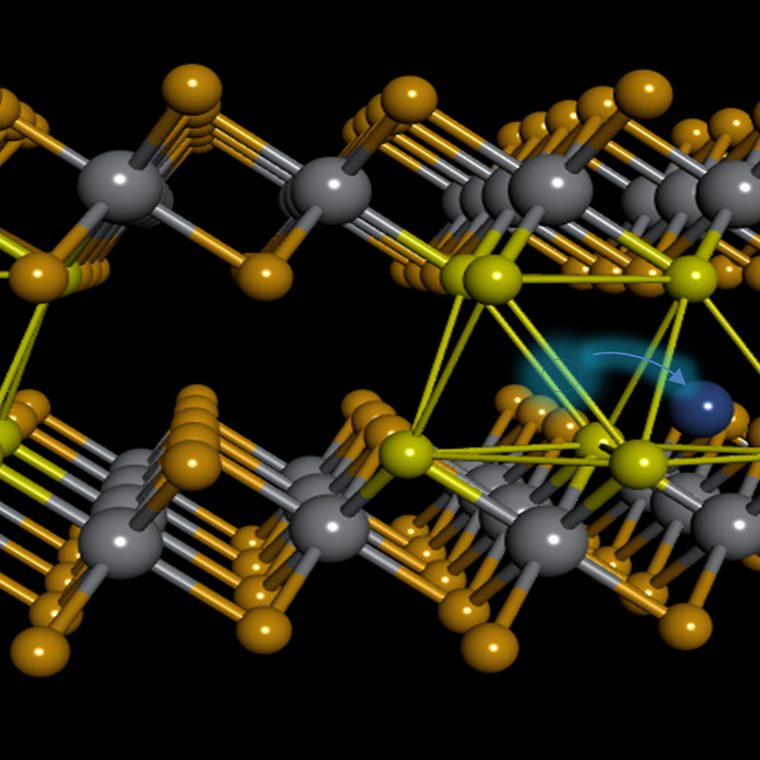

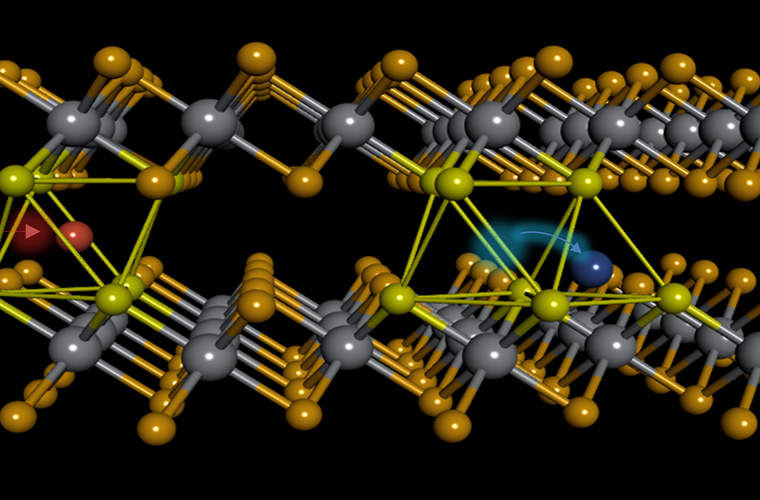

Transition of Ni atom from octahedral to tetrahedral site by intercalation of Cu in TiSe2. Credits: I. Pis, IOM-CNR (Italy)

Transition metal dichalcogenides (TMDC) represent a family of materials typically in the form of MX2 where M is the transition metal and X is the chalcogen (S, Se, Te). Most TMDC bulk crystals are layered solids with strong bonding within the plane but weak interlayer bonding. The ability to tune the chemistry by choosing a unique combination of transition metals, chalcogen and dopant atoms along with controlling their properties by phase engineering allows realizing new functionalities with applications in semiconductor and data storage devices, spintronics, sensors, or in catalysis. Dopant atoms may intercalate between layers and appropriate dopant selection and concentration can improve the performance of TMDCs. On the other hand, an improper doping might have unwanted effects. It is therefore desirable to determine correlations between TMDC phase changes and the amount and nature of the intercalated atoms. Understanding the principles and mechanisms yielding the phases with desired or undesired properties is an important prerequisite to engineer materials with tailored functionalities.



While the effect of the intercalation of single metals into TMDCs is well understood nowadays, little is known about the compounds intercalated with several different metals. The team around Alexander Titov of the Institute of Metal Physics in Yekaterinburg (Russia) has been able to synthesize couple of new compounds of this peculiar class of TMDCs. “The transition from mono to poly-intercalation is like to watching colour TV after black-and-white one. Particularly interesting seems to be Cu and Ni co-intercalated TiSe2.” explains Alexander Titov. It is known that, in single metal intercalated TiSe2, Cu and Ni atoms occupy octahedral sites and hybridize with Ti atoms of the host lattice, while tetrahedral sites are energetically unstable. But which sites will be occupied if we introduce both Cu and Ni atoms simultaneously? Surprisingly, the researchers have discovered that introduction of Cu into Ni-intercalated (Ni)TiSe2 results in the displacement of the Ni atoms from octahedral to tetrahedral sites, even at room temperature. Why is this happening? What is at the origin of this phase transition? To answer these questions, the scientific team has turned to NFFA-EU infrastructures which offer advanced spectroscopic characterization of the electronic structure of solid state materials.



“These results will have important implications for predicting the properties of similar bi-intercalated layered materials,”
– explains Igor Píš of IOM-CNR.

The electronic structure investigations were performed by photoemission and X-ray absorption spectroscopy at the BACH beamline of IOM-CNR developed in collaboration with synchrotron Elettra in Trieste (Italy). The results indicate that the transition of Ni atoms originates in altered electronic structure induced by charge transfer from Cu atoms. It seems that these changes make the hybridization between Ni and Se atoms (tetrahedral sites) more favourable than between Ni and Ti atoms (octahedral sites). Moreover, the interaction between the Ni and Cu dopants is not direct but mediated by the host lattice. “These results will have important implications for predicting the properties of similar bi-intercalated layered materials,” explains Igor Píš of IOM-CNR. Other intriguing point is that the intercalation of Cu atoms and subsequent redistribution of Ni atoms is accompanied by negligible deformation of the crystal lattice. “The observed invariance of the crystal lattice parameters upon the bi-intercalation makes these materials interesting also for applications in electrochemistry,” says Alexey Shkvarin of the Institute of Metal Physics in Yekaterinburg.

On-resonance valence band spectra before (left) and after (right) Cu intercalation show charge transfer to TiSe2 conduction band. Credits: Igor Pis, IOM-CNR.



Publication Details

September 04, 2020, Journal of Materials Chemistry C

Electronic and crystal structure of bi-intercalated titanium diselenide CuxNiyTiSe2

E.G.Shkvarina, A.I.Merentsov, M.S.Postnikov, A.S.Shkvarin, S.V. Pryanichnikov , I.Pis, S.Nappini, F.Bondino, A.N.Titov

NFFA-Europe Facilities and Techniques

BACH beamline at synchrotron Elettra works in the extreme UV-soft x-ray photon energy range (45-1650 eV) with selectable light polarization, high energy resolution, and high intensity. The beamline offers a multi-technique approach for the investigation of the electronic, chemical, structural and magnetic properties of materials. The sample environment is completely in ultra-high-vacuum (UHV). It is possible to perform spectroscopic investigations by means of photoemission UPS/XPS (including polarization and photon energy-dependent EUV and soft x-rays ARPES, RESPES, energy-dependent photoelectron diffraction, temperature-programmed photoemission TP-XPS), x-ray absorption XAS (TEY,PEY,TFY,PFY) including gap scan acquisitions and x-ray magnetic circular dichroism XMCD (in remanence). https://www.elettra.eu/elettra-beamlines/bach.html
